ACOPower

HY020-12M

ACOPower

Looking for the best ACOPower panel?
We'll help you with:

Personalized quotes

Pre-vetted installers

Better product & prices

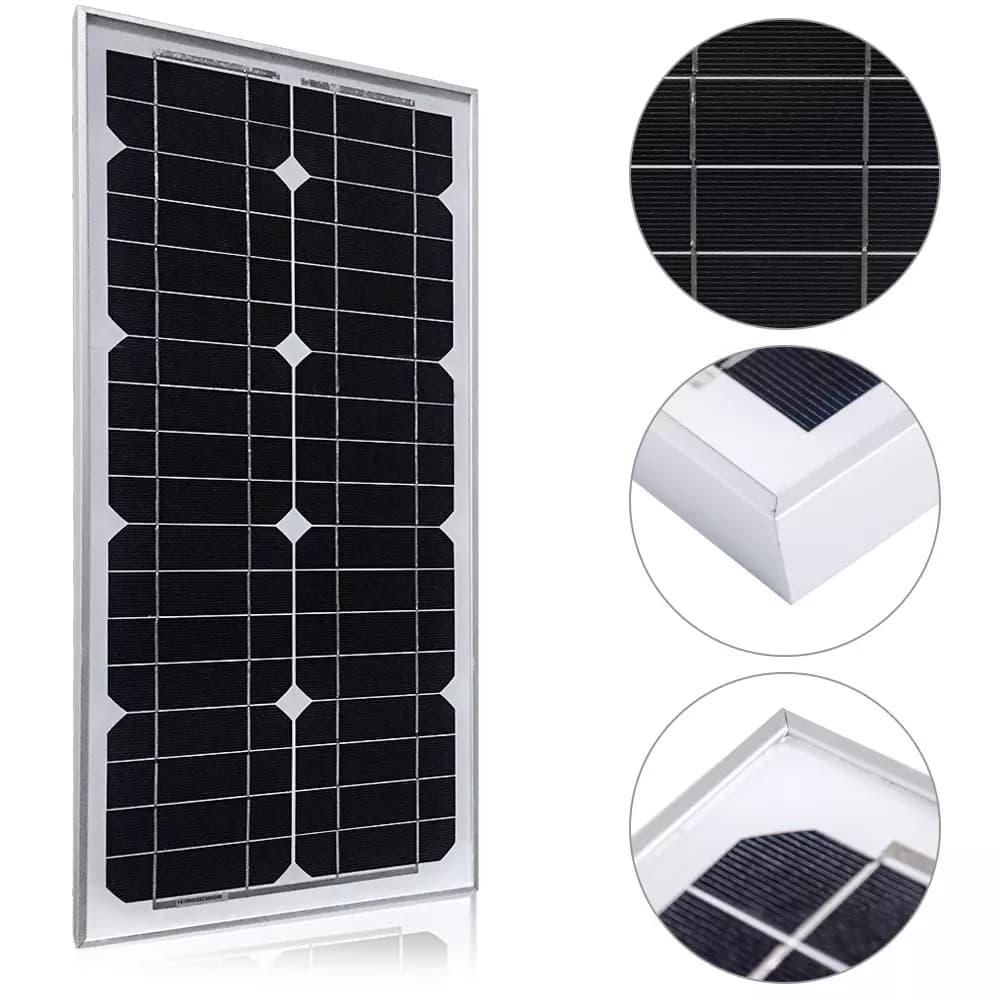

EnergyPal ACOPower Solar Panels HY020-12M HY020-12M
Model
HY020-12M
Series
HY020-12M
Manufacturer
ACOPower
Rated Power
20 Wp
Output Warranty
10 Years of 85% Output Power, 20 Years of 70% Output Power
Materials Warranty
25 Years

The HY020-12M solar panels are compatible with various solar energy systems, including grid-tied and off-grid setups. Homeowners can also pair these panels with energy storage solutions, such as home batteries, to store excess energy for use during peak hours or in case of power outages.

Buy ACOPower HY020-12M Solar Panels

EnergyPal is a dealer for the best solar panels and leading energy companies, solar installers and manufacturers of solar and battery storage products. To see our latest deals, and learn about financing and $0 down lease options, please request a quote and we will call you immediately.

Solar Panel Performance

The HY020-12M solar panels have a rated output of 20 Wp and an impressive efficiency of 10.89 %, making them an excellent choice for homeowners looking to harness the power of the sun and reduce their energy costs.

With a maximum system voltage of 1000 V and a temperature coefficient of -0.45 %/°C, these solar panels can perform optimally even in challenging weather conditions.

Rated Power
20 Wp
Efficiency
10.89 %
Voltage at Maximum Power VMPP
17.5 V
Current at Maximum Power IMPP
1.14 A
Open Circuit Voltage VOC
22 V
Short Circuit Current ISC
1.23 A
Power Tolerance Positive
+ 3 %
Maximum System Voltage
1000 V
Maximum Fuse Rating
10 A

Solar Panels Warranty Terms

Output Warranty
10 Years of 85% Output Power, 20 Years of 70% Output Power
Materials Warranty
25 Years

Solar Panels Thermal Ranges

The thermal performance of the HY020-12M solar panels from ACOPower ensures their reliability and efficiency across varying temperature conditions. These panels are designed to operate optimally within a wide operating temperature range of -40~85 °C. Additionally, the temperature coefficients of the panels, such as the Temperature Coefficient of Pmax (-0.45 %/°C), Voc (-0.35 %/°C), and Isc (0.05 %/°C), play a vital role in determining the panel performance under changing environmental conditions. The carefully engineered thermal attributes of these solar panels contribute to their long-lasting performance and make them an ideal choice for regions with diverse climate patterns

Operating Temperature Range
-40~85 °C
Temperature Coefficient of Pmax
-0.45 %/°C
Temperature Coefficient of Voc
-0.35 %/°C
Temperature Coefficient of Isc
0.05 %/°C

Solar Panel Attributes

Weight
2.8 kg
Cell Type
Monocrystalline
Cell Size
125×125 mm
Cell Count
36
Glass Type
High Transmittance, Low Iron
Glass Thickness
3.2 mm
