Tesla Model X

Electric Vehicle Datasheet

Tesla Model X

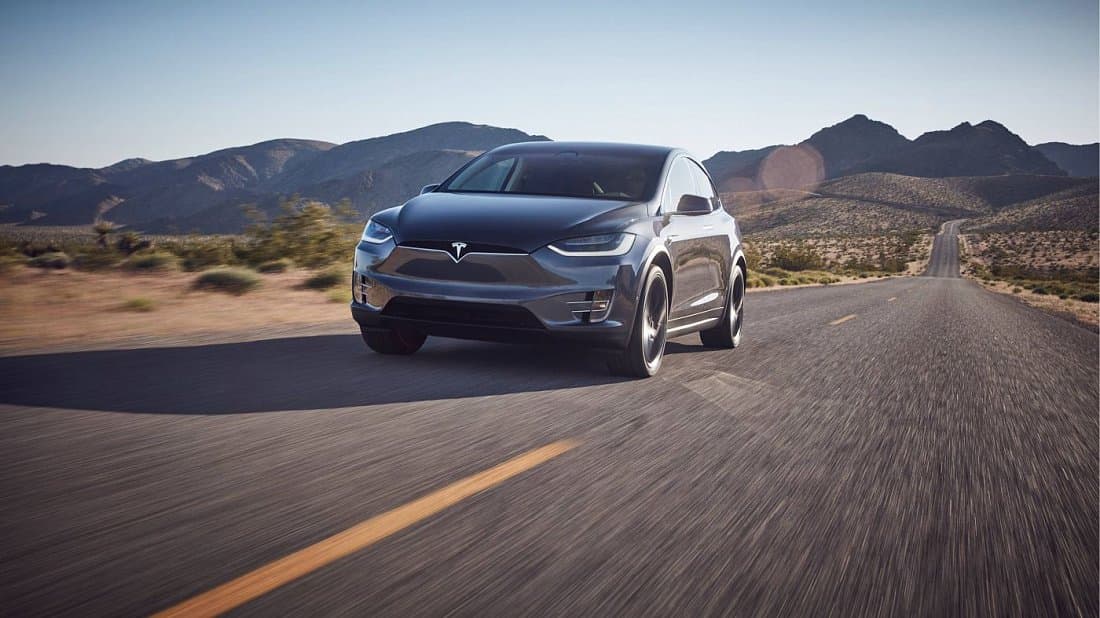

Tesla Model X Overview

The Tesla Model X represents the forefront of electric vehicle (EV) technology, combining impressive performance with environmental sustainability. As the world shifts towards greener alternatives, the synergy between EVs and solar power has emerged as a powerful solution to reduce carbon footprints and embrace renewable energy sources. This guide explores how to power the Tesla Model X using solar panels, ensuring your drive is not just efficient but also eco-friendly.

The Tesla Model X Performance stands out with its remarkable efficiency of 33 kWh/100 miles kWh/100 miles and a substantial range of 300 miles (483 km) miles on a single charge. Manufactured in USA, Holland (Tesla), this Suv features a Permanent-magnet motor, delivering 785 hp (585 kW) of power and 713 lb-ft (967 Nm) of torque. Its acceleration from 0-60 mph in just 2.6 s seconds and a top speed of 162.2 mph (262 km/h) highlight the Tesla Model X's exceptional performance capabilities.

Here are the full specifications for the Tesla Model X Performance:

Model
Tesla Model X
Trim
Performance
Brand
Tesla
Year
2019 - 2020
Range EPA
300 miles (483 km)
Vehicle Efficiency
33 kWh/100 miles
Manufactured
USA, Holland (Tesla)
Find out how many solar panels you need to power the Tesla Model X

Vehicle Performance

Vehicle Accleration (0-60 mph)
2.6 s
Top Speed
162.2 mph (262 km/h)
Engine Power
785 hp (585 kW)
Total Torque
713 lb-ft (967 Nm)
Drive Type
AWD
Vehicle Efficiency
33 kWh/100 miles
Motor Type
Permanent-magnet

Battery

Capacity
100 kWh
Range EPA
300 miles (483 km)

The Role of Solar Power in EV Charging

Integrating solar power with electric vehicle charging presents a sustainable path forward. Solar panels convert sunlight into electricity, offering a clean, renewable source that can significantly reduce reliance on fossil fuels. For EV owners, particularly those with a Tesla Model X, solar energy can provide a cost-effective, eco-friendly way to charge their vehicles, contributing to reduced electricity bills and a smaller carbon footprint.

Charging info for Tesla Model X

Charge Port Type
Type2
Max charging power (AC)
16.5 kW
Average charging speed (DC)
~525 mph

Calculating Solar Panel Needs for the Tesla Model X

To determine the number of solar panels required to power the Tesla Model X, consider its energy consumption of 33 kWh/100 miles kWh/100 miles and a 100 kWh kWh battery capacity. The calculation involves assessing your daily or monthly mileage, the efficiency of the solar panels you intend to install, and the average sunlight hours your location receives. You can check how many panel using our EV solar charging calculator.

Installation and Cost Considerations

Installing solar panels to power your Tesla Model X involves several considerations, including the choice of panels, the capacity of your solar system, and the specifics of your installation site. Costs can vary based on these factors, but solar incentives and rebates can make the investment more affordable. Financing options, such as $0 down leases, are available to help manage upfront costs, making solar power accessible to a broader audience.

Getting an EV? We'll help you power your car and home.

Step 1 of 4

Do you own or rent your property?

Technical Specifications

Body Type
Suv
Weight
5531 lb
Dimensions
198.3 x 81.5 x 64 in
Cargo Volume
88 ft3
Wheelbase
116.7 in
Number of seats
5
Towing Capacity
5000 lb
